Zelfborende torxschroef BP5

Zelfborende torxschroef BP5

STAAL 5 TOT 10 MM - VERZINKT Artikelnummer: 20040555040M
  • Ringdiameter:
    10 mm3/8 "
    • 10 mm3/8 "
  • Coating(RAL):

Basis

Toepassing

Profielplaten Verzinkt Staal 5 tot 10 mm Staal 6 Ga tot 3/8"

Specificaties

  1. Aansluiting Torx 25
  2. Afdichtring RVS/EPDM 9 mm
  3. Draad t.b.v. ondergrond staal 5 tot 10 mm
  4. Boorpunt 5

Specificaties

  1. Aansluiting Torx 25
  2. Afdichtring RVS/EPDM 11/32"
  3. Draad t.b.v. ondergrond staal 6 Ga to 3/8"”
  4. Boorpunt 5

Opties

  1. Poedercoat in iedere gewenste RAL kleur

Opties

  1. Poedercoat in iedere gewenste RAL kleur

Certificaten

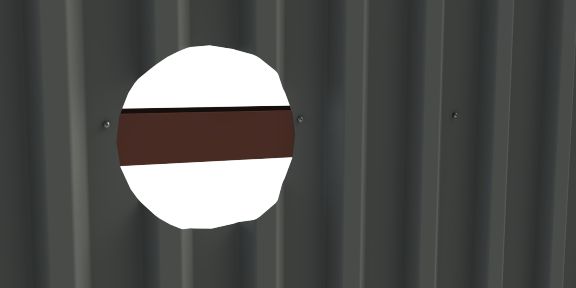

Doorsnede

Bestel informatie

ProductAfmeting (L)VerpakkingArtikelcode
Zelfborende Torxschroef 5,5 x 40 - BP540 mm250 st/doos20040555040M
ProductAfmeting (L)VerpakkingArtikelcode
Zelfborende Torxschroef #12 x 1 1/2” - BP51 1/2”250 st/doos20040555040M

Aantal schroeven

Buitenplaat dikte Oplegging Overspanning Aan de kust In het binnenland
Aantal velden Aantal velden
1 ≥ 2 1 ≥ 2
Ø10mm Ø10mm Ø10 mm Ø10 mm
0.4 eind 2000 2 2 1 1
3000 3 2 2 1
4000 3 3 2 2
tussen 2000 - 4 - 2
3000 - 6 - 3
4000 - 8 - 4
0.5 eind 2000 1 1 1 1
3000 2 2 1 1
4000 2 2 2 1
tussen 2000 - 3 - 2
3000 - 4 - 2
4000 - 5 - 3
0.63 eind 2000 1 1 1 1
3000 2 1 1 1
4000 2 2 1 1
tussen 2000 - 2 - 1
3000 - 3 - 2
4000 - 4 - 2

Het aantal bevestigers per oplegging in bovenstaande tabel is gebaseerd op standaard situaties (zie eveneens onderstaande uitgangspunten) en dient enkel ter indicatie van het aantal benodigde bevestigingsmiddelen. Indien een projectspecifieke berekening gewenst is, kunt u contact opnemen met Fastener Point.

  • Aantal benodigde bevestigingen per oplegging voor een plaat met breedte 1000 mm
  • Windbelasting conform NEN-EN1991-1-4 Zone I, gebouwhoogte 9 meter, onbebouwd, gevolgklasse CC1, dakhelling 15°
  • Ondergrond staaldikte 6 mm

Mechanische eigenschappen

10 mm
3/8''
Materialen
Schroef Verzinkt staal
AfdichtringVerzinkt staal
Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
BoorcapaciteitStaal ≤ 10 mm
Materialen
Schroef Verzinkt staal
AfdichtringVerzinkt staal
Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
BoorcapaciteitStaal ≤ 3/8”
ringdiameter 10 mm3/8 "
tN1 [mm] tII [mm]
0.75 0.88 1 1.13 1.25 1.5 2 3 4 6
VR,k [kN] 0.4 1.03 1.03 1.03 1.03 1.03 1.03 1.03 1.03 1.03 1.03
0.5 1.58 1.58 1.58 1.58 1.58 1.58 1.58 1.58 1.58 1.58
0.55 1.65 1.65 1.65 1.65 1.65 1.65 1.65 1.65 1.65 1.65
0.63 1.77 1.77 1.77 1.77 1.77 1.77 1.77 1.77 1.77 1.77
0.75 1.95 1.95 1.95 1.95 1.95 1.95 1.95 1.95 1.95 1.95
0.88 1.95 2.77 2.77 2.77 2.77 2.77 2.77 2.77 2.77 2.77
1 1.95 2.77 2.77 2.77 2.77 2.77 2.77 2.77 2.77 2.77
1.13 1.95 2.77 2.77 2.77 2.77 2.77 2.77 2.77 2.77 2.77
1.25 1.95 2.77 2.77 2.77 2.77 2.77 2.77 2.77 2.77 2.77
NR,k [kN] 0.4 0.57 0.78 0.97 1.17 1.36 1.39 1.39 1.39 1.39 1.39
0.5 0.57 0.78 0.97 1.17 1.36 1.76 2.12 2.12 2.12 2.12
0.55 0.57 0.78 0.97 1.17 1.36 1.76 2.4 2.4 2.4 2.4
0.63 0.57 0.78 0.97 1.17 1.36 1.76 2.55 2.86 2.86 2.86
0.75 0.57 0.78 0.97 1.17 1.36 1.76 2.55 3.55 3.55 3.55
0.88 0.57 0.78 0.97 1.17 1.36 1.76 2.55 4.37 4.37 4.37
1 0.57 0.78 0.97 1.17 1.36 1.76 2.55 4.37 4.37 4.37
1.13 0.57 0.78 0.97 1.17 1.36 1.76 2.55 4.37 4.37 4.37
1.25 0.57 0.78 0.97 1.17 1.36 1.76 2.55 4.37 4.37 4.37
tN1 [Ga] tII [inch]
22 Ga 21 Ga 20 Ga 19 Ga 18 Ga 17 Ga 14 Ga 3 4 6
VR,k [kN] 28 Ga 231 231 231 231 231 231 231 1.03 1.03 1.03
26 Ga 355 355 355 355 355 355 355 1.58 1.58 1.58
25 Ga 370 370 370 370 370 370 370 1.65 1.65 1.65
23 Ga 397 397 397 397 397 397 397 1.77 1.77 1.77
22 Ga 438 438 438 438 438 438 438 1.95 1.95 1.95
21 Ga 438 622 622 622 622 622 622 2.77 2.77 2.77
20 Ga 438 622 622 622 622 622 622 2.77 2.77 2.77
19 Ga 438 622 622 622 622 622 622 2.77 2.77 2.77
18 Ga 438 622 622 622 622 622 622 2.77 2.77 2.77
NR,k [kN] 28 Ga 128 175 218 263 305 312 312 1.39 1.39 1.39
26 Ga 128 175 218 263 305 395 476 2.12 2.12 2.12
25 Ga 128 175 218 263 305 395 539 2.4 2.4 2.4
23 Ga 128 175 218 263 305 395 573 2.86 2.86 2.86
22 Ga 128 175 218 263 305 395 573 3.55 3.55 3.55
21 Ga 128 175 218 263 305 395 573 4.37 4.37 4.37
20 Ga 128 175 218 263 305 395 573 4.37 4.37 4.37
19 Ga 128 175 218 263 305 395 573 4.37 4.37 4.37
18 Ga 128 175 218 263 305 395 573 4.37 4.37 4.37
  • Bovenstaande waarden zijn karakteristieke waarden
  • Voor het bepalen van de rekenwaarde adviseren wij een materiaalfactor γm = 1,33 te gebruiken
  • Bovenstaande waarden zijn karakteristieke waarden
  • Voor het bepalen van de rekenwaarde adviseren wij een materiaalfactor γm = 1,33 te gebruiken
Materialen
Schroef Verzinkt staal
AfdichtringVerzinkt staal
Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
BoorcapaciteitStaal ≤ 10 mm
Materialen
Schroef Verzinkt staal
AfdichtringVerzinkt staal
Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
BoorcapaciteitStaal ≤ 3/8”
mm "
      Materialen
      Schroef Verzinkt staal
      AfdichtringVerzinkt staal
      Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
      Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
      BoorcapaciteitStaal ≤ 10 mm
      Materialen
      Schroef Verzinkt staal
      AfdichtringVerzinkt staal
      Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
      Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
      BoorcapaciteitStaal ≤ 3/8”
      mm "
          Materialen
          Schroef Verzinkt staal
          AfdichtringVerzinkt staal
          Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
          Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
          BoorcapaciteitStaal ≤ 10 mm
          Materialen
          Schroef Verzinkt staal
          AfdichtringVerzinkt staal
          Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
          Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
          BoorcapaciteitStaal ≤ 3/8”
          mm "
