Zelfborende torxschroef BP3

Zelfborende torxschroef BP3

STAAL 1,5 - 5 MM - VERZINKT Artikelnummer: 20040348020M
  • Ringdiameter:
    10 mm3/8 "
    • 10 mm3/8 "
  • Coating(RAL):

Basis

Toepassing

Profielplaten Verzinkt Staal 1,5 tot 5 mm Staal 17 Ga tot 6 Ga

Specificaties

  1. Aansluiting Torx 25
  2. Afdichtring RVS/EPDM 9 mm
  3. Draad t.b.v. ondergrond staal 1,5 tot 5 mm
  4. Boorpunt 3

Specificaties

  1. Aansluiting Torx 25
  2. Afdichtring RVS/EPDM 11/32"
  3. Draad t.b.v. ondergrond staal 17 Ga to 6 Ga
  4. Boorpunt 3

Opties

  1. Poedercoat in iedere gewenste RAL kleur

Opties

  1. Poedercoat in iedere gewenste RAL kleur

Certificaten

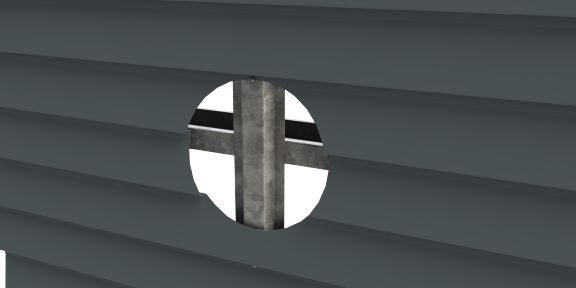

Doorsnede

Bestel informatie

ProductAfmeting (L)VerpakkingArtikelcode
Zelfborende Torxschroef 4,8 x 20 - BP320 mm500 st/doos20040348020M
ProductAfmeting (L)VerpakkingArtikelcode
Zelfborende Torxschroef #10 x 3/4” - BP33/4”500 st/doos20040348020M

Aantal schroeven

Buitenplaat dikte Oplegging Overspanning Aan de kust In het binnenland
aantal velden aantal velden
1 ≥ 2 1 ≥ 2
Ø10mm Ø10mm Ø10 mm Ø10 mm
0.4 eind 2000 2 2 1 1
3000 3 2 2 1
4000 4 3 2 2
tussen 2000 - 5 - 3
3000 - 7 - 4
4000 - 9 - 5
0.5 eind 2000 2 1 1 1
3000 2 2 1 1
4000 3 2 2 1
tussen 2000 - 3 - 2
3000 - 4 - 3
4000 - 6 - 3
0.63 eind 2000 1 1 1 1
3000 2 2 1 1
4000 2 2 1 1
tussen 2000 - 3 - 2
3000 - 4 - 2
4000 - 5 - 3

Het aantal bevestigers per oplegging in bovenstaande tabel is gebaseerd op standaard situaties (zie eveneens onderstaande uitgangspunten) en dient enkel ter indicatie van het aantal benodigde bevestigingsmiddelen. Indien een projectspecifieke berekening gewenst is, kunt u contact opnemen met Fastener Point.

  • Aantal benodigde bevestigingen per oplegging voor een plaat met breedte 1000 mm
  • Windbelasting conform NEN-EN1991-1-4 Zone I, gebouwhoogte 9 meter, onbebouwd, gevolgklasse CC1, dakhelling 15°
  • Ondergrond staaldikte 6 mm

Mechanische eigenschappen

10 mm
3/8''
Materialen
Schroef Verzinkt staal
AfdichtringVerzinkt staal
Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
BoorcapaciteitStaal ≤ 5 mm
Materialen
Schroef Verzinkt staal
AfdichtringVerzinkt staal
Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
BoorcapaciteitSteel ≤ 6 Ga
ringdiameter 10 mm3/8 "
tN1 [mm] tII [mm]
0.75 1 1.5 2 3 4 6
VR,k [kN] 0.4 1.01 1.01 1.01 1.01 1.01 1.01 1.01
0.5 1.52 1.52 1.52 1.52 1.52 1.52 1.52
0.55 1.56 1.56 1.56 1.56 1.56 1.56 1.56
0.63 1.63 1.63 1.63 1.63 1.63 1.63 1.63
0.75 1.73 1.73 1.73 1.73 1.73 1.73 1.73
0.88 1.73 2.71 2.71 2.71 2.71 2.71 2.71
1 2.71 2.71 2.71 2.71 2.71 2.71 2.71
1.13 2.71 2.71 2.71 2.71 2.71 2.71 2.71
1.25 2.71 2.71 2.71 2.71 2.71 2.71 2.71
NR,k [kN] 0.4 0.56 1.27 1.27 1.27 1.27 1.27 1.27
0.5 0.56 1.44 2.02 2.02 2.02 2.02 2.02
0.55 0.56 1.44 2.25 2.25 2.25 2.25 2.25
0.63 0.56 1.44 2.3 2.62 2.62 2.62 2.62
0.75 0.56 1.44 2.3 2.92 3.17 3.17 3.17
0.88 0.56 1.44 2.3 2.92 3.17 3.17 3.17
1 0.56 1.44 2.3 2.92 3.17 3.17 3.17
1.13 0.56 1.44 2.3 2.92 3.17 3.17 3.17
1.25 0.56 1.44 2.3 2.92 3.17 3.17 3.17
tN1 [Ga] tII [inch]
22 Ga 20 Ga 17 Ga 14 Ga 11 Ga 9 Ga 4 Ga
VR,k [kN] 28 Ga 227 227 227 227 227 227 227
26 Ga 341 341 341 341 341 341 341
25 Ga 350 350 350 350 350 350 350
23 Ga 366 366 366 366 366 366 366
22 Ga 388 388 388 388 388 388 388
21 Ga 388 609 609 609 609 609 609
20 Ga 609 609 609 609 609 609 609
19 Ga 609 609 609 609 609 609 609
18 Ga 609 609 609 609 609 609 609
NR,k [kN] 28 Ga 125 285 285 285 285 285 285
26 Ga 125 323 454 454 454 454 454
25 Ga 125 323 505 505 505 505 505
23 Ga 125 323 517 589 589 589 589
22 Ga 125 323 517 656 712 712 712
21 Ga 125 323 517 656 712 712 712
20 Ga 125 323 517 656 712 712 712
19 Ga 125 323 517 656 712 712 712
18 Ga 125 323 517 656 712 712 712
  • Bovenstaande waarden zijn karakteristieke waarden
  • Voor het bepalen van de rekenwaarde adviseren wij een materiaalfactor γm = 1,33 te gebruiken
  • Bovenstaande waarden zijn karakteristieke waarden
  • Voor het bepalen van de rekenwaarde adviseren wij een materiaalfactor γm = 1,33 te gebruiken
Materialen
Schroef Verzinkt staal
AfdichtringVerzinkt staal
Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
BoorcapaciteitStaal ≤ 5 mm
Materialen
Schroef Verzinkt staal
AfdichtringVerzinkt staal
Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
BoorcapaciteitSteel ≤ 6 Ga
mm "
      Materialen
      Schroef Verzinkt staal
      AfdichtringVerzinkt staal
      Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
      Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
      BoorcapaciteitStaal ≤ 5 mm
      Materialen
      Schroef Verzinkt staal
      AfdichtringVerzinkt staal
      Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
      Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
      BoorcapaciteitSteel ≤ 6 Ga
      mm "
          Materialen
          Schroef Verzinkt staal
          AfdichtringVerzinkt staal
          Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
          Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
          BoorcapaciteitStaal ≤ 5 mm
          Materialen
          Schroef Verzinkt staal
          AfdichtringVerzinkt staal
          Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
          Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
          BoorcapaciteitSteel ≤ 6 Ga
          mm "
