Zelfborende afwerkteks BP2 Square drive

Zelfborende afwerkteks BP2 Square drive

staal ≤ 1,5 mm - rvs SUS410 Artikelnummer: 2003024201
  • Ringdiameter:
    8 mm5/16 "
    • 8 mm5/16 "
  • Coating(RAL):

Basis

Toepassing

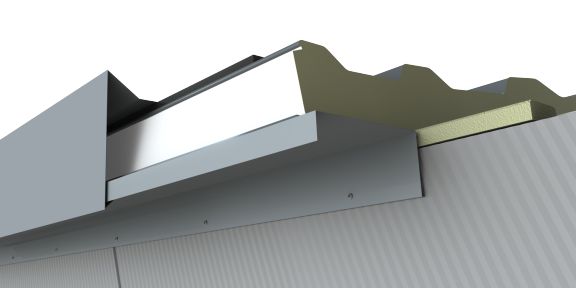

Plaat-op-plaat RVS SUS410 Staal ≤ 1,5 mm Staal ≤ 17 Ga

Specificaties

  1. Aansluiting square drive met serrations
  2. Draad t.b.v. ondergrond staal ≤ 1,5 mm
  3. Boorpunt 2 gereduceerd

Specificaties

  1. Aansluiting square drive
  2. Draad t.b.v. ondergrond staal ≤ 17 Ga
  3. Boorpunt 2 gereduceerd

Opties

  1. Poedercoat in iedere gewenste kleur

Opties

  1. Poedercoat in iedere gewenste kleur

Doorsnede

Bestel informatie

ProductAfmetingVerpakkingArtikelcode
Zelfborende afwerkteks 4,2 x 16 - BP24,2 x 16 mm500 st/doos20030242016SQ
Zelfborende afwerkteks 4,2 x 19 - BP24,2 x 19 mm500 st/doos20030242019SQ
ProductAfmetingVerpakkingArtikelcode
Zelfborende afwerkteks #8 x 1 3/8" - BP2#8 x 1 3/8"500 st/doos20030242016SQ
Zelfborende afwerkteks #8 x 1 7/8" - BP2#8 x 1 7/8"500 st/doos20030242019SQ

Mechanische eigenschappen

8 mm
5/16''
Materialen
Schroef RVS 1.4006 (SUS410) - conform EN3506
AfdichtringRVS 1.4301 (A2) - conform EN3506
Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
BoorcapaciteitStaal ≤ 1,5 mm
Materialen
Schroef RVS 1.4006 (SUS410) - conform EN3506
AfdichtringRVS 1.4301 (A2) - conform EN3506
Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
BoorcapaciteitStaal ≤ 17 Ga
squaredrive 8 mm5/16 "
tN1 [mm] tII [mm]
0.4 0.5 0.55 0.63 0.75 0.88 1 1.13 1.25 1.5 2
VR,k [kN] 0.4 0.53 0.53 0.53 0.53 0.53 0.53 0.53 0.53 0.53 0.53 0.53
0.5 0.53 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8
0.55 0.53 0.8 0.93 0.93 0.93 0.93 0.93 0.93 0.93 0.93 0.93
0.63 0.53 0.8 0.93 1.14 1.14 1.14 1.14 1.14 1.14 1.14 1.14
0.75 0.53 0.8 0.93 1.14 1.46 1.46 1.46 1.46 1.46 1.46 1.46
0.88 0.53 0.8 0.93 1.14 1.46 2.35 2.35 2.35 2.35 2.35 2.35
1 0.53 0.8 0.93 1.14 1.46 2.35 2.35 2.35 2.35 2.35 2.35
1.13 0.53 0.8 0.93 1.14 1.46 2.35 2.35 2.35 2.35 2.35 2.35
1.25 0.53 0.8 0.93 1.14 1.46 2.35 2.35 2.35 2.35 2.35 2.35
NR,k [kN] 0.4 0.26 0.42 0.47 0.55 0.66 0.88 0.88 0.88 0.88 0.88 0.88
0.5 0.26 0.42 0.47 0.55 0.66 1 1.21 1.33 1.33 1.33 1.33
0.55 0.26 0.42 0.47 0.55 0.66 1 1.21 1.44 1.46 1.46 1.46
0.63 0.26 0.42 0.47 0.55 0.66 1 1.21 1.44 1.65 1.68 1.68
0.75 0.26 0.42 0.47 0.55 0.66 1 1.21 1.44 1.65 2.01 2.01
0.88 0.26 0.42 0.47 0.55 0.66 1 1.21 1.44 1.65 2.08 2.44
1 0.26 0.42 0.47 0.55 0.66 1 1.21 1.44 1.65 2.08 2.44
1.13 0.26 0.42 0.47 0.55 0.66 1 1.21 1.44 1.65 2.08 2.44
1.25 0.26 0.42 0.47 0.55 0.66 1 1.21 1.44 1.65 2.08 2.44
tN1 [Ga] tII [inch]
28 Ga 26 Ga 25 Ga 23 Ga 22 Ga 21 Ga 20 Ga 19 Ga 18 Ga 17 Ga 14 Ga
VR,k [kN] 28 Ga 119 119 119 119 119 119 119 119 119 119 119
26 Ga 119 179 179 179 179 179 179 179 179 179 179
25 Ga 119 179 209 209 209 209 209 209 209 209 209
23 Ga 119 179 209 256 256 256 256 256 256 256 256
22 Ga 119 179 209 256 328 328 328 328 328 328 328
21 Ga 119 179 209 256 328 528 528 528 528 528 528
20 Ga 119 179 209 256 328 528 528 528 528 528 528
19 Ga 119 179 209 256 328 528 528 528 528 528 528
18 Ga 119 179 209 256 328 528 528 528 528 528 528
NR,k [kN] 28 Ga 58 94 105 123 148 197 197 197 197 197 197
26 Ga 58 94 105 123 148 224 272 298 298 298 298
25 Ga 58 94 105 123 148 224 272 323 328 328 328
23 Ga 58 94 105 123 148 224 272 323 370 377 377
22 Ga 58 94 105 123 148 224 272 323 370 451 451
21 Ga 58 94 105 123 148 224 272 323 370 467 548
20 Ga 58 94 105 123 148 224 272 323 370 467 548
19 Ga 58 94 105 123 148 224 272 323 370 467 548
18 Ga 58 94 105 123 148 224 272 323 370 467 548
  • Bovenstaande waarden zijn karakteristieke waarden
  • Voor het bepalen van de rekenwaarde adviseren wij een materiaalfactor γm = 1,33 te gebruiken
  • Bovenstaande waarden zijn karakteristieke waarden
  • Voor het bepalen van de rekenwaarde adviseren wij een materiaalfactor γm = 1,33 te gebruiken
Materialen
Schroef RVS 1.4006 (SUS410) - conform EN3506
AfdichtringRVS 1.4301 (A2) - conform EN3506
Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
BoorcapaciteitStaal ≤ 1,5 mm
Materialen
Schroef RVS 1.4006 (SUS410) - conform EN3506
AfdichtringRVS 1.4301 (A2) - conform EN3506
Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
BoorcapaciteitStaal ≤ 17 Ga
mm "
      Materialen
      Schroef RVS 1.4006 (SUS410) - conform EN3506
      AfdichtringRVS 1.4301 (A2) - conform EN3506
      Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
      Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
      BoorcapaciteitStaal ≤ 1,5 mm
      Materialen
      Schroef RVS 1.4006 (SUS410) - conform EN3506
      AfdichtringRVS 1.4301 (A2) - conform EN3506
      Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
      Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
      BoorcapaciteitStaal ≤ 17 Ga
      mm "
          Materialen
          Schroef RVS 1.4006 (SUS410) - conform EN3506
          AfdichtringRVS 1.4301 (A2) - conform EN3506
          Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
          Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
          BoorcapaciteitStaal ≤ 1,5 mm
          Materialen
          Schroef RVS 1.4006 (SUS410) - conform EN3506
          AfdichtringRVS 1.4301 (A2) - conform EN3506
          Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
          Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
          BoorcapaciteitStaal ≤ 17 Ga
          mm "
