Zelfborende afwerkteks BP2 1/4” zeskant

Zelfborende afwerkteks BP2 1/4” zeskant

staal ≤ 1,5 mm - verzinkt Artikelnummer: 2004024
  • Aangeperste ring diameter:
    8.5 mm5/16 "
    • 8.5 mm5/16 "
  • Afmeting:
    Selecteer een optie
    • 4,2 x 16 mm#8 x 5/8"
    • 4,2 x 19 mm#8 x 3/4"
    • 4,8 x 25 mm#8 x 7/8"
  • Coating(RAL):

Basis

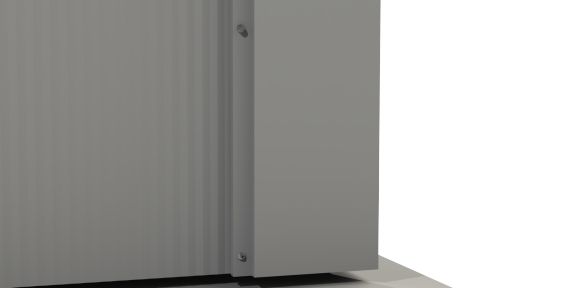

Toepassing

Plaat-op-plaat Verzinkt Staal ≤ 1,5 mm Staal ≤ 17 Ga

Specificaties

  1. Aansluiting 1/4" zeskant met serrations
  2. Aangeperste ring
  3. Draad t.b.v. ondergrond staal ≤ 1,5 mm
  4. Boorpunt 2 gereduceerd

Specificaties

  1. Aansluiting 1/4" zeskant met serrations
  2. Aangeperste ring
  3. Draad t.b.v. ondergrond staal ≤ 17 Ga
  4. Boorpunt 2 gereduceerd

Doorsnede

Bestel informatie

ProductAfmetingVerpakkingArtikelcode
Zelfborende afwerkteks 4,2 x 16 - BP24,2 x 16 mm500 st/doos20040242016
Zelfborende afwerkteks 4,2 x 19 - BP24,2 x 19 mm500 st/doos20040242019
Zelfborende afwerkteks 4,8 x 25 - BP24,8 x 25 mm250 st/doos20040248025
ProductAfmetingVerpakkingArtikelcode
Zelfborende afwerkteks #8 x 5/8" - BP2#8 x 5/8"500 st/doos20040242016
Zelfborende afwerkteks #8 x 3/4" - BP2#8 x 3/4"500 st/doos20040242019
Zelfborende afwerkteks #8 x 7/8" - BP2#8 x 7/8"250 st/doos20040248025

Mechanische eigenschappen

8.5 mm
5/16''
Materialen
Schroef Gegalvaniseerd staal
AfdichtringGegalvaniseerd staal
Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
BoorcapaciteitStaal ≤ 1,5 mm
Materialen
Schroef Gegalvaniseerd staal
AfdichtringGegalvaniseerd staal
Materiaal A (tI)S280GD, S320GD en S350GD conform EN 10346
Materiaal B (tII)S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346
BoorcapaciteitStaal ≤ 17 Ga
schroefkop 8.5 mm5/16 "
tN1 [mm] tII [mm]
0.4 0.5 0.55 0.63 0.75 0.88 1 1.13 1.25 1.5 2
VR,k [kN] 0.4 0.69 0.69 0.69 0.69 0.69 0.69 0.69 0.69 0.69 0.69 0.69
0.5 0.69 0.94 0.94 0.94 0.94 0.94 0.94 0.94 0.94 0.94 0.94
0.55 0.69 0.94 1.11 1.11 1.11 1.11 1.11 1.11 1.11 1.11 1.11
0.63 0.69 0.94 1.11 1.38 1.38 1.38 1.38 1.38 1.38 1.38 1.38
0.75 0.69 0.94 1.11 1.38 1.78 1.78 1.78 1.78 1.78 1.78 1.78
0.88 0.69 0.94 1.11 1.38 1.78 2.66 2.66 2.66 2.66 2.66 2.66
1 0.69 0.94 1.11 1.38 1.78 2.66 2.66 2.66 2.66 2.66 2.66
1.13 0.69 0.94 1.11 1.38 1.78 2.66 2.66 2.66 2.66 2.66 2.66
1.25 0.69 0.94 1.11 1.38 1.78 2.66 2.66 2.66 2.66 2.66 2.66
NR,k [kN] 0.4 0.26 0.42 0.47 0.55 0.66 0.81 0.81 0.81 0.81 0.81 0.81
0.5 0.26 0.42 0.47 0.55 0.66 1 1.21 1.26 1.26 1.26 1.26
0.55 0.26 0.42 0.47 0.55 0.66 1 1.21 1.39 1.39 1.39 1.39
0.63 0.26 0.42 0.47 0.55 0.66 1 1.21 1.44 1.59 1.59 1.59
0.75 0.26 0.42 0.47 0.55 0.66 1 1.21 1.44 1.65 1.89 1.89
0.88 0.26 0.42 0.47 0.55 0.66 1 1.21 1.44 1.65 2.08 2.31
1 0.26 0.42 0.47 0.55 0.66 1 1.21 1.44 1.65 2.08 2.31
1.13 0.26 0.42 0.47 0.55 0.66 1 1.21 1.44 1.65 2.08 2.31
1.25 0.26 0.42 0.47 0.55 0.66 1 1.21 1.44 1.65 2.08 2.31
tN1 [Ga] tII [inch]
28 Ga 26 Ga 25 Ga 23 Ga 22 Ga 21 Ga 20 Ga 19 Ga 18 Ga 17 Ga 14 Ga
VR,k [kN] 28 Ga 155 155 155 155 155 155 155 155 155 155 155
26 Ga 155 211 211 211 211 211 211 211 211 211 211
25 Ga 155 211 249 249 249 249 249 249 249 249 249
23 Ga 155 211 249 310 310 310 310 310 310 310 310
22 Ga 155 211 249 310 400 400 400 400 400 400 400
21 Ga 155 211 249 310 400 597 597 597 597 597 597
20 Ga 155 211 249 310 400 597 597 597 597 597 597
19 Ga 155 211 249 310 400 597 597 597 597 597 597
18 Ga 155 211 249 310 400 597 597 597 597 597 597
NR,k [kN] 28 Ga 58 94 105 123 148 182 182 182 182 182 182
26 Ga 58 94 105 123 148 224 272 283 283 283 283
25 Ga 58 94 105 123 148 224 272 312 312 312 312
23 Ga 58 94 105 123 148 224 272 323 357 357 357
22 Ga 58 94 105 123 148 224 272 323 370 424 424
21 Ga 58 94 105 123 148 224 272 323 370 467 519
20 Ga 58 94 105 123 148 224 272 323 370 467 519
19 Ga 58 94 105 123 148 224 272 323 370 467 519
18 Ga 58 94 105 123 148 224 272 323 370 467 519
  • Bovenstaande waarden zijn karakteristieke waarden
  • Voor het bepalen van de rekenwaarde adviseren wij een materiaalfactor γm = 1,33 te gebruiken
  • Bovenstaande waarden zijn karakteristieke waarden
  • Voor het bepalen van de rekenwaarde adviseren wij een materiaalfactor γm = 1,33 te gebruiken
