Basis
Toepassing
Profielplaten
Verzinkt
Staal ≤ 1,5 mm
Staal ≤ 17 Ga
Specificaties
- Aansluiting 5/16” (8 mm)
- Ringdiameter standaard 16 mm
- Verzinkt met aangevulcaniseerd EPDM
- Klemdraad
- Draad t.b.v. ondergrond staal ≤ 1,5 mm
- Boorpunt 1 gereduceerd
Specificaties
- Aansluiting 5/16”
- Ringdiameter standaard 5/8”
- Verzinkt met aangevulcaniseerd EPDM
- Klemdraad
- Draad t.b.v. ondergrond staal ≤ 17 Ga
- Boorpunt 1 gereduceerd
Opties
- Poedercoat in iedere gewenste RAL kleur
Opties
- Poedercoat in iedere gewenste RAL kleur
Certificaten

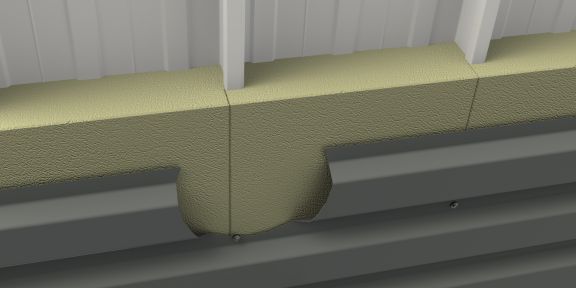

Doorsnede
Bestel informatie
Product | Isolatie- dikte | Binnen- doos | Afmeting (L) | Verpakking | Artikelcode |
---|---|---|---|---|---|
Zelfborende Afstandschroef 5,5/6,3 x 75 | 130 mm | 90 mm | 75 mm | 100 st/doos | 2004005513016 |
Zelfborende Afstandschroef 5,5/6,3 x 95 | 150 mm | 90 mm | 95 mm | 100 st/doos | 2004005515016 |
Product | Isolatie- dikte | Binnen- doos | Afmeting (L) | Verpakking | Artikelcode |
---|---|---|---|---|---|
Zelfborende Afstandschroef #12 - #14 x 2 7/8” | 5 3/32” | 3 17/32” | 2 7/8” | 100 st/doos | 2004005513016 |
Zelfborende Afstandschroef #12 - #14 x 3 5/8” | 5 29/32” | 3 17/32” | 3 5/8” | 100 st/doos | 2004005515016 |
Aantal schroeven
Buitenplaat dikte | Oplegging | Overspanning | Aan de kust | In het binnenland | |||||||||
Aantal velden | Aantal velden | ||||||||||||
1 | ≥ 2 | 1 | ≥ 2 | ||||||||||
Ø16 mm | Ø16 mm | Ø16 mm | Ø16 mm | ||||||||||
0.4 | eind | 2000 | 2 | 2 | 1 | 1 | |||||||
3000 | 3 | 3 | 2 | 2 | |||||||||
4000 | 4 | 3 | 2 | 2 | |||||||||
tussen | 2000 | - | 5 | - | 3 | ||||||||
3000 | - | 8 | - | 4 | |||||||||
4000 | - | 10 | - | 5 | |||||||||
0.5 | eind | 2000 | 2 | 1 | 1 | 1 | |||||||
3000 | 2 | 2 | 2 | 1 | |||||||||
4000 | 3 | 2 | 2 | 2 | |||||||||
tussen | 2000 | - | 4 | - | 2 | ||||||||
3000 | - | 5 | - | 3 | |||||||||
4000 | - | 7 | - | 4 | |||||||||
0.63 | eind | 2000 | 2 | 1 | 1 | 1 | |||||||
3000 | 2 | 2 | 1 | 1 | |||||||||
4000 | 3 | 2 | 2 | 1 | |||||||||
tussen | 2000 | - | 3 | - | 2 | ||||||||
3000 | - | 4 | - | 3 | |||||||||
4000 | - | 6 | - | 3 |
Het aantal bevestigers per oplegging in bovenstaande tabel is gebaseerd op standaard situaties (zie eveneens onderstaande uitgangspunten) en dient enkel ter indicatie van het aantal benodigde bevestigingsmiddelen. Indien een projectspecifieke berekening gewenst is, kunt u contact opnemen met Fastener Point.
- Aantal benodigde bevestigingen per oplegging voor een plaat met breedte 1000 mm
- Windbelasting conform NEN-EN1991-1-4 Zone I, gebouwhoogte 9 meter, onbebouwd, gevolgklasse CC1, dakhelling 15°
- Ondergrond staaldikte 2 mm
Mechanische eigenschappen
16 mm
5/8''
Materialen | ||
---|---|---|
Schroef | Verzinkt staal |
|
Afdichtring | Verzinkt staal | |
Materiaal A (tI) | S280GD, S320GD en S350GD conform EN 10346 | |
Materiaal B (tII) | S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346 | |
Boorcapaciteit | Staal ≤ 1,5 mm |
Materialen | ||
---|---|---|
Schroef | Verzinkt staal |
|
Afdichtring | Verzinkt staal | |
Materiaal A (tI) | S280GD, S320GD en S350GD conform EN 10346 | |
Materiaal B (tII) | S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346 | |
Boorcapaciteit | Staal ≤ 17 Ga |
ringdiameter
16 mm5/8 "
tN1 [mm] | tII [mm] | ||||||||||||
0.4 | 0.5 | 0.55 | 0.63 | 0.75 | 0.88 | 1 | 1.13 | 1.25 | 1.5 | 2 | |||
VR,k [kN] | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | |
0.5 | 0.4 | 0.66 | 0.66 | 0.66 | 0.66 | 0.66 | 0.66 | 0.66 | 0.66 | 0.66 | 0.66 | ||
0.55 | 0.4 | 0.66 | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | ||
0.63 | 0.4 | 0.66 | 0.85 | 1.14 | 1.14 | 1.14 | 1.14 | 1.14 | 1.14 | 1.14 | 1.14 | ||
0.75 | 0.4 | 0.66 | 0.85 | 1.14 | 1.58 | 1.58 | 1.58 | 1.58 | 1.58 | 1.58 | 1.58 | ||
0.88 | 0.4 | 0.66 | 0.85 | 1.14 | 1.58 | 2.42 | 2.42 | 2.42 | 2.42 | 2.42 | 2.42 | ||
1 | 0.4 | 0.66 | 0.85 | 1.14 | 1.58 | 2.42 | 2.42 | 2.42 | 2.42 | 2.42 | 2.42 | ||
1.13 | 0.4 | 0.66 | 0.85 | 1.14 | 1.58 | 2.42 | 2.42 | 2.42 | 2.42 | 2.42 | 2.42 | ||
1.25 | 0.4 | 0.66 | 0.85 | 1.14 | 1.58 | 2.42 | 2.42 | 2.42 | 2.42 | 2.42 | 2.42 | ||
NR,k [kN] | 0.4 | 0.27 | 0.36 | 0.4 | 0.46 | 0.56 | 0.92 | 1.09 | 1.09 | 1.09 | 1.09 | 1.09 | |
0.5 | 0.27 | 0.36 | 0.4 | 0.46 | 0.56 | 0.92 | 1.13 | 1.36 | 1.57 | 1.62 | 1.62 | ||
0.55 | 0.27 | 0.36 | 0.4 | 0.46 | 0.56 | 0.92 | 1.13 | 1.36 | 1.57 | 1.8 | 1.8 | ||
0.63 | 0.27 | 0.36 | 0.4 | 0.46 | 0.56 | 0.92 | 1.13 | 1.36 | 1.57 | 2.01 | 2.08 | ||
0.75 | 0.27 | 0.36 | 0.4 | 0.46 | 0.56 | 0.92 | 1.13 | 1.36 | 1.57 | 2.01 | 2.51 | ||
0.88 | 0.27 | 0.36 | 0.4 | 0.46 | 0.56 | 0.92 | 1.13 | 1.36 | 1.57 | 2.01 | 2.51 | ||
1 | 0.27 | 0.36 | 0.4 | 0.46 | 0.56 | 0.92 | 1.13 | 1.36 | 1.57 | 2.01 | 2.51 | ||
1.13 | 0.27 | 0.36 | 0.4 | 0.46 | 0.56 | 0.92 | 1.13 | 1.36 | 1.57 | 2.01 | 2.51 | ||
1.25 | 0.27 | 0.36 | 0.4 | 0.46 | 0.56 | 0.92 | 1.13 | 1.36 | 1.57 | 2.01 | 2.51 |
tN1 [Ga] | tII [inch] | ||||||||||||
28 Ga | 26 Ga | 25 Ga | 23 Ga | 22 Ga | 21 Ga | 20 Ga | 19 Ga | 18 Ga | 17 Ga | 14 Ga | |||
VR,k [kN] | 28 Ga | 89 | 89 | 89 | 89 | 89 | 89 | 89 | 89 | 89 | 89 | 89 | |
26 Ga | 89 | 148 | 148 | 148 | 148 | 148 | 148 | 148 | 148 | 148 | 148 | ||
25 Ga | 89 | 148 | 191 | 191 | 191 | 191 | 191 | 191 | 191 | 191 | 191 | ||
23 Ga | 89 | 148 | 191 | 256 | 256 | 256 | 256 | 256 | 256 | 256 | 256 | ||
22 Ga | 89 | 148 | 191 | 256 | 355 | 355 | 355 | 355 | 355 | 355 | 355 | ||
21 Ga | 89 | 148 | 191 | 256 | 355 | 544 | 544 | 544 | 544 | 544 | 544 | ||
20 Ga | 89 | 148 | 191 | 256 | 355 | 544 | 544 | 544 | 544 | 544 | 544 | ||
19 Ga | 89 | 148 | 191 | 256 | 355 | 544 | 544 | 544 | 544 | 544 | 544 | ||
18 Ga | 89 | 148 | 191 | 256 | 355 | 544 | 544 | 544 | 544 | 544 | 544 | ||
NR,k [kN] | 28 Ga | 60 | 80 | 89 | 103 | 125 | 206 | 245 | 245 | 245 | 245 | 245 | |
26 Ga | 60 | 80 | 89 | 103 | 125 | 206 | 254 | 305 | 352 | 364 | 364 | ||
25 Ga | 60 | 80 | 89 | 103 | 125 | 206 | 254 | 305 | 352 | 404 | 404 | ||
23 Ga | 60 | 80 | 89 | 103 | 125 | 206 | 254 | 305 | 352 | 451 | 467 | ||
22 Ga | 60 | 80 | 89 | 103 | 125 | 206 | 254 | 305 | 352 | 451 | 564 | ||
21 Ga | 60 | 80 | 89 | 103 | 125 | 206 | 254 | 305 | 352 | 451 | 564 | ||
20 Ga | 60 | 80 | 89 | 103 | 125 | 206 | 254 | 305 | 352 | 451 | 564 | ||
19 Ga | 60 | 80 | 89 | 103 | 125 | 206 | 254 | 305 | 352 | 451 | 564 | ||
18 Ga | 60 | 80 | 89 | 103 | 125 | 206 | 254 | 305 | 352 | 451 | 564 |
- Bovenstaande waarden zijn karakteristieke waarden
- Voor het bepalen van de rekenwaarde adviseren wij een materiaalfactor γm = 1,33 te gebruiken
- Bovenstaande waarden zijn karakteristieke waarden
- Voor het bepalen van de rekenwaarde adviseren wij een materiaalfactor γm = 1,33 te gebruiken
Materialen | ||
---|---|---|
Schroef | Verzinkt staal |
|
Afdichtring | Verzinkt staal | |
Materiaal A (tI) | S280GD, S320GD en S350GD conform EN 10346 | |
Materiaal B (tII) | S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346 | |
Boorcapaciteit | Staal ≤ 1,5 mm |
Materialen | ||
---|---|---|
Schroef | Verzinkt staal |
|
Afdichtring | Verzinkt staal | |
Materiaal A (tI) | S280GD, S320GD en S350GD conform EN 10346 | |
Materiaal B (tII) | S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346 | |
Boorcapaciteit | Staal ≤ 17 Ga |
mm "
Materialen | ||
---|---|---|
Schroef | Verzinkt staal |
|
Afdichtring | Verzinkt staal | |
Materiaal A (tI) | S280GD, S320GD en S350GD conform EN 10346 | |
Materiaal B (tII) | S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346 | |
Boorcapaciteit | Staal ≤ 1,5 mm |
Materialen | ||
---|---|---|
Schroef | Verzinkt staal |
|
Afdichtring | Verzinkt staal | |
Materiaal A (tI) | S280GD, S320GD en S350GD conform EN 10346 | |
Materiaal B (tII) | S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346 | |
Boorcapaciteit | Staal ≤ 17 Ga |
mm "
Materialen | ||
---|---|---|
Schroef | Verzinkt staal |
|
Afdichtring | Verzinkt staal | |
Materiaal A (tI) | S280GD, S320GD en S350GD conform EN 10346 | |
Materiaal B (tII) | S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346 | |
Boorcapaciteit | Staal ≤ 1,5 mm |
Materialen | ||
---|---|---|
Schroef | Verzinkt staal |
|
Afdichtring | Verzinkt staal | |
Materiaal A (tI) | S280GD, S320GD en S350GD conform EN 10346 | |
Materiaal B (tII) | S235 conform EN 10025-2, S280GD, S320GD en S350GD conform EN 10346 | |
Boorcapaciteit | Staal ≤ 17 Ga |
mm "
